Self-pressure sealed swing check valve
Nominal diameter: DN10-100mm
Nominal pressure: PN10-42.0mpa
Applicable media: steam, water, and corrosive media
Medium temperature: -50 ℃~700 ℃
Nominal pressure: PN10-42.0mpa
Applicable media: steam, water, and corrosive media
Medium temperature: -50 ℃~700 ℃
Product Overview
The two ends of the branch pipe of the swing check valve are welded structures, and the welded groove can be made according to standards or user requirements. It has advantages such as wear resistance, high temperature resistance, corrosion resistance, scratch resistance, and long service life. Suitable for pipelines of high-temperature and high-pressure water, steam, oil products, and superheated steam in thermal power plants, petrochemicals, metallurgy, and other industries with working pressure ranging from 1500 to 2500 and working temperature ranging from -29 to 570 ℃, as a device to prevent medium backflow.

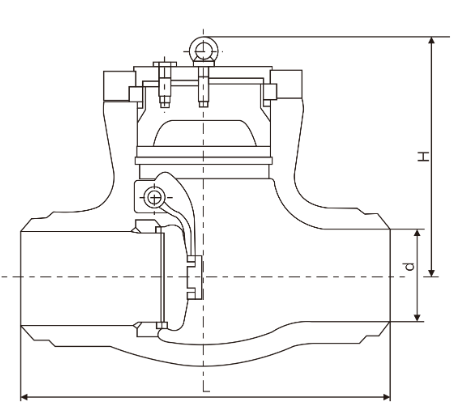

Main external connection dimensions(H64Y-1500Lb H64Y-250/P55140V)
NPS(in) | d | L | H | WT(kg) |
2-1/2 | 62 | 419 | 282 | 57 |
3 | 74 | 470 | 300 | 57 |
4 | 100 | 546 | 350 | 80 |
5 | 144 | 673 | 425 | 115 |
6 | 144 | 705 | 400 | 180 |
8 | 292 | 832 | 490 | 270 |
10 | 239 | 991 | 540 | 430 |
12 | 287 | 113 | 650 | 630 |
14 | 315 | 1257 | 710 | 1400 |
(H64Y-2000Lb H64Y-320/P55170V)
NPS(in) | d | L | H | WT(kg) |
2-1/2 | 50 | 330 | 240 | 40 |
3 | 60 | 368 | 305 | 60 |
4 | 80 | 457 | 315 | 95 |
5 | 96 | 533 | 409 | 170 |
6 | 118 | 610 | 465 | 186 |
8 | 147 | 762 | 528 | 415 |
10 | 180 | 914 | 613 | 658 |
12 | 222 | 1041 | 680 | 1200 |
14 | 254 | 1118 | 745 | 1638 |
(H64Y-2500Lb H64Y-420/P55250V)
NPS(in) | d | L | H | WT(kg) |
3 | 62 | 578 | 297 | 44 |
4 | 81 | 673 | 385 | 110 |
5 | 86 | 794 | 410 | 130 |
6 | 131 | 914 | 455 | 192 |
8 | 179 | 1022 | 557 | 466 |
10 | 223 | 1270 | 615 | 730 |
12 | 265 | 1422 | 715 | 1120 |
14 | 292 | 1118 | 790 | 1495 |
16 | 333 | 1245 | 815 | 1950 |
18 | 374 | 1397 | 815 | 2400 |
